Application
The Def-Stan multi-core cable is suitable for the general wiring of the instruments and control equipment in the application areas of aircraft, computers and military equipment, etc.

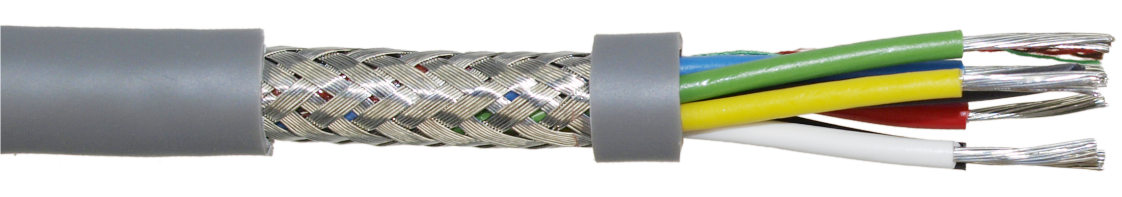

Cable structure
Conductor: Class 5 flexible tinned copper 0.05 mm2 (7/0.1 mm)
Insulation: PVC
Optional screen: tinned copper wire braid
Sheath: PVC
Sheath color: black
Technical data
Voltage rating:
Cores with 7/0.1 mm conductors: 250 V
Temperature rating: 70 ℃
Maximum resistance of conductor at 20 ℃
7/0.1 mm: 384 Ohm/km
Minimum bending radius
7.5 x cable diameter
