Application
Individually screened multi-pair RS422 cable is a low capacitance cable, showing excellent protection against cross-talk and protection from electrical interference. It’s mainly used in the application areas of instrumentation, audio and security and computer, etc.
Cable structure
Conductor: stranded tinned copper
Insulation: PE
Screen: Al-PET and drain wire
Sheath: PVC/LSF/LSZH
Sheath color: grey
Technical data
Voltage rating: 300 V
Temperature rating: 80 ℃
Capacitance at 1 kHz: 50 pF/m
Max. conductor resistance: 85 Ohm/km

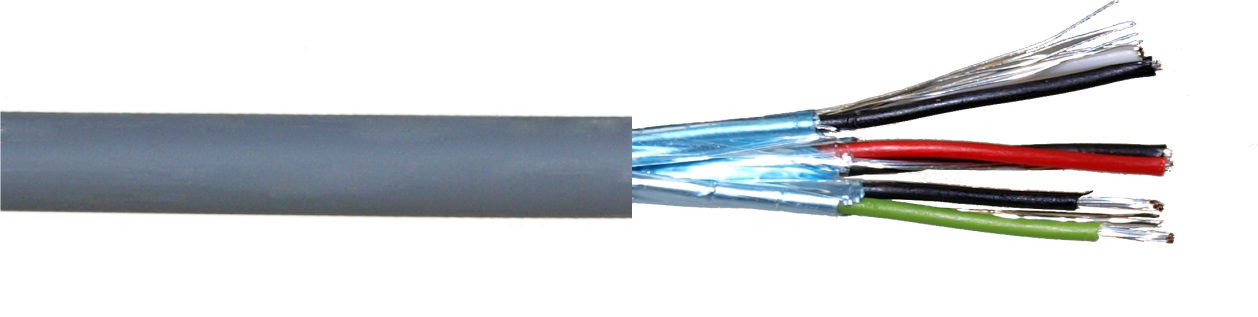

Picture shows CC97130
