Application
Overall screened multi-pair cable is suitable for use over long distances at high performance levels and where low signal disturbance is required, providing excellent protection against electrical interference.
Cable structure
Conductor: stranded tinned copper
Insulation: PVC/LSZH
Screen: Al-PET and drain wire
Sheath: LSF/LSZH
Sheath color: grey
Technical data
Voltage rating: 300 V
Temperature rating: 80 ℃
Capacitance at 1 kHz: 98.4 pF/m
Max. conductor resistance: 78.7 Ohm/km

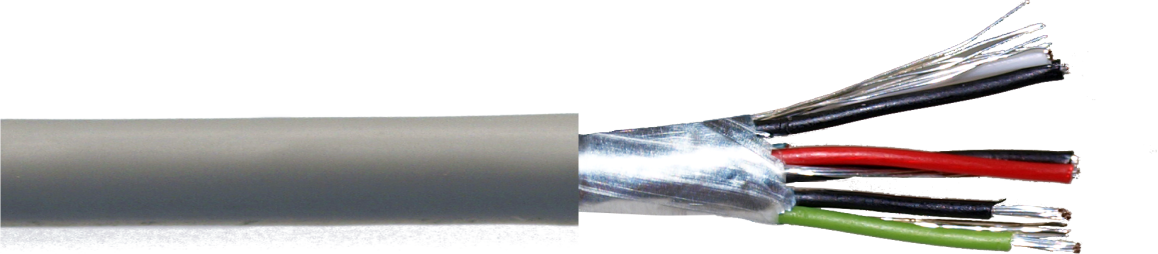

Picture shows CC95103
