Application
The cable is designed for ADSL transmission systems. It ensures data bandwidth up to 10 MHz.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
10 x cable diameter
Maximum conductor resistance at 20 °C
143 Ohm/km
Impedance(Ohm): 120
Maximum Average Attenuation
at 1 MHz (dB/km): 32
Maximum Average Attenuation
at 10 MHz (dB/km): 110
Minimum NEXT pair-to-pair at 1 MHz (dB): 55
Minimum NEXT pair-to-pair at 10 MHz (dB): 40

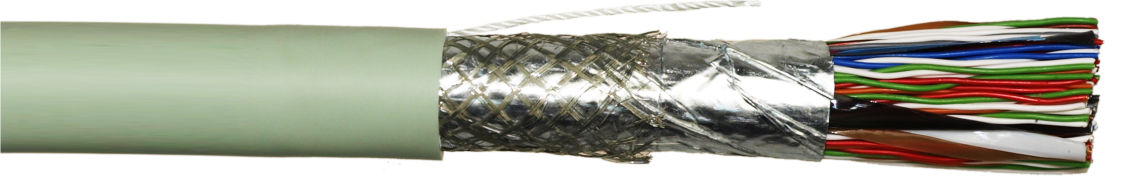

Cable structure
Conductors: Solid annealed bare copper sized 0.4 mm
Insulation: PE
Screen: Al-PET and tinned copper braiding
Ripcord
Sheath: PVC/LSZH compound
