Application
The BT 2001 coax cables are suitable for communication and signal control systems.
Technical data
Maximum conductor resistance
at 20°C (Ohm/km): 84.6
Minimum insulation DC resistance
at 20℃ (MOhm x km): 100
Temperature rating (℃): 80
Nominal voltage (V): 30
Velocity ratio (%): 82
Impedance (Ohm): 75±3
Capacitance (pF/m): <65

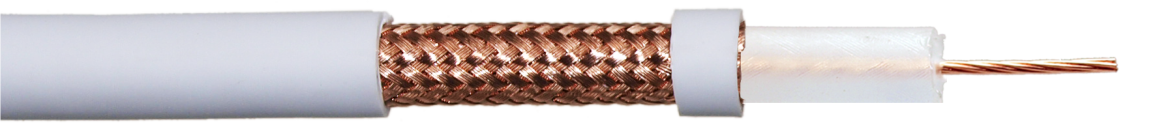

Cable structure
Conductors: bare copper, diameter 0.20 x 7 mm
Insulation: foam PE, diameter 2.4 mm
Braiding: bare copper; coverage: 94%
Sheath: PVC, diameter 4.4 mm
Sheath color: white
Multi-core coax cables are available; typically 4, 8, 16 and 32 cores
