Application
The BT 2003 coax cables are suitable for communication and signal control systems.
Technical data
Maximum conductor resistance
at 20°C (Ohm/km): 63.7
Minimum insulation DC resistance
at 20°C (MOhm x km): 20000
Temperature rating (℃): -20 ~ 70
Nominal voltage (V): 30
Velocity ratio (%): 67.7
Impedance (Ohm): 75±3
Capacitance (pF/m): <70

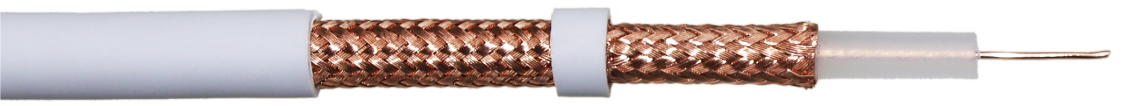

Cable structure
Conductors: bare copper, diameter 0.61 mm
Insulation: solid PE, diameter 3.7 mm
Braiding 1: bare copper; coverage: 93%
Braiding 2: bare copper; coverage: 92%
Sheath: PVC, diameter 6.7 mm
Sheath color: white
Multi-core coax cables are available; typically 4, 8, 16 and 32 cores
