Application
The BT 3002 coax cables are suitable for communication and signal control systems.
Technical data
Maximum conductor resistance
at 20°C (Ohm/km): 246.5
Minimum Insulation DC Resistance
at 20°C (MOhm x km): 20000
Temperature rating (℃): 80
Nominal voltage (V): 30
Velocity ratio (%): 66.6
Impedance (Ohm): 75±3
Cable structure
Conductors: bare copper, diameter 0.31 mm
Insulation: solid PE, diameter 1.95 mm
Braiding 1: tinned copper; coverage: 94%
Braiding 2: tinned copper; coverage: 95%
Sheath: PVC, diameter 3.55 mm
Sheath color: white

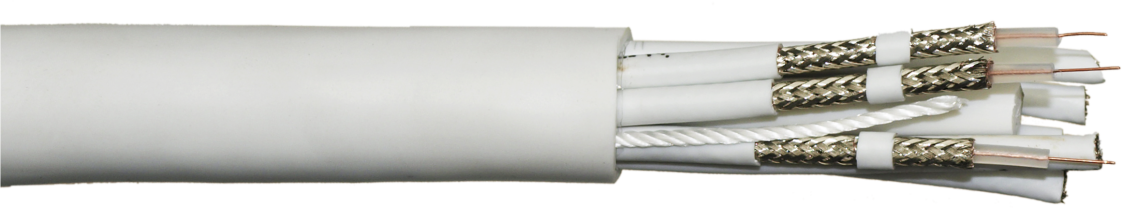

Multi-core coax cables are available; typically 4, 8, 16 and 32 cores
