Application
CC 7000 is a flexible cable which runs up to 250 m at 34 Mbit/s. It is also capable to run over 100 m at 155 Mbit/s. It is ideal for use on HDC systems and VoIP application;
Technical data
Maximum conductor resistance
at 20°C (Ohm/km): 7.32
Minimum insulation DC resistance
at 20°C (MOhm x km): 200
Temperature rating (℃): 60
Nominal voltage (V): 30
Capacitance (pF/m): 56
Velocity ratio (%): 82.5
Impedance (Ohm): 75±3
Capacitance (pF/m): <70
Cable structure
Conductors: solid bare copper, diameter 0.60 mm.
Insulation: foam PE, diameter 2.80 mm
Shield: Al-PET and tinned copper braiding
Sheath: LSZH, diameter 4.5 mm

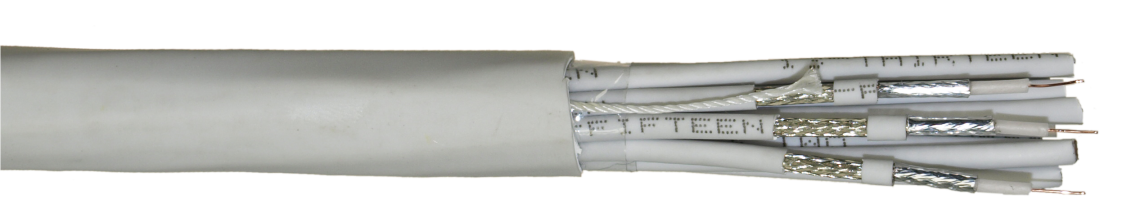

Multi-core coax cables are available; typically 4, 8, 16 and 32 cores
