Application
CC 8000 is a high performance alternative to BT 3002 with a much smaller overall diameter, and suitable for 2 Mbit/s application.
Technical data
Maximum conductor resistance
at 20°C(Ohm/km): 23.6
Minimum insulation DC resistance
at 20°C (MOhm x km): 200
Temperature rating (℃): 60
Nominal voltage (V): 30
Capacitance (pF/m): 56
Velocity ratio (%): 82
Impedance (Ohm): 75±3
Capacitance (pF/m): 56
Cable structure
Conductors: solid bare copper, diameter 0.31 mm.
Insulation: foam PE, diameter 1.45 mm
Shield: Al-PET and tinned copper braiding
Sheath: LSZH, diameter 2.75 mm

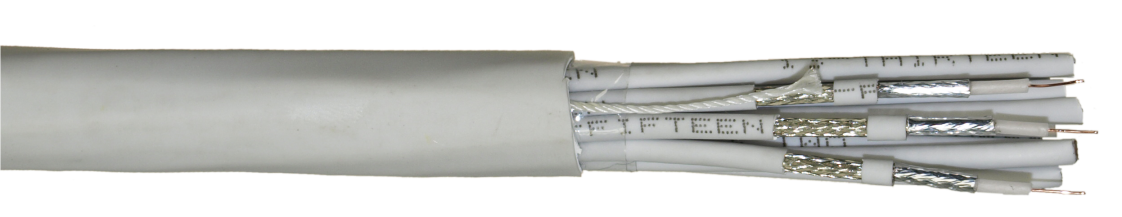

Multi-core coax cables are available; typically 4, 8, 16 and 32 cores
