Application
The cable is mainly designed to connect telephone equipments and can be used in low level signaling applications.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
10 x cable diameter
Maximum conductor resistance at 20 °C
96 Ohm/km
Nominal diameter of conductors
0.5 mm
Average mutual capacitance
56 pF/km

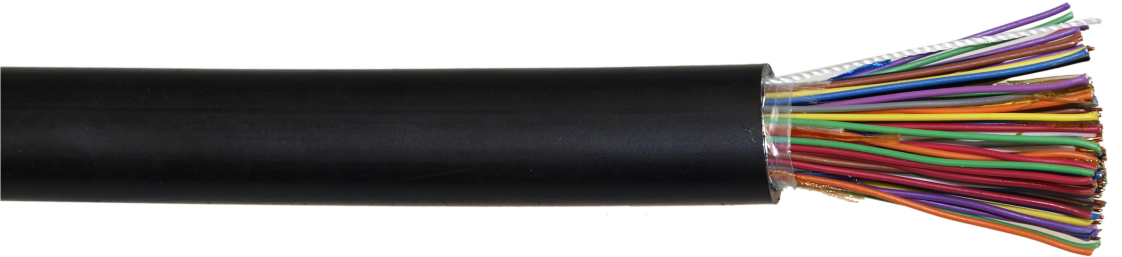

Cable structure
Conductor: solid bare copper
Insulation: foam PE
Filler: petroleum jelly
Separator: tape
Sheath: PE
Sheath color: black
Pair identification
Quad: Orange/Green/White/Black
Pair 1: White/Blue
Pair 2: White/Orange
Pair 3: White/Green
Pair 4: White/Brown
Pair 5: White/Grey
Pair 6: Red/Blue
Pair 7: Red/Orange
Pair 8: Red/Green
Pair 9: Red/Brown
Pair 10: Red/Grey
Unit 1: Blue
Unit 2: Orange
Unit 3: Green
Unit 4: Brown
Unit 5: Grey
Unit 6: White
Unit 7: Red
Unit 8: Black
Unit 9: Yellow
Unit 10: Violet
