Application
The cable is mainly designed to connect telephone equipments and can be used in low level signaling applications. It is suitable for outdoor usage and direct burial, being UV and moisture resistant.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
10 x cable diameter
Maximum conductor resistance at 20 °C
96 Ohm/km
Nominal diameter of conductors
0.5 mm
Average mutual capacitance
56 pF/km

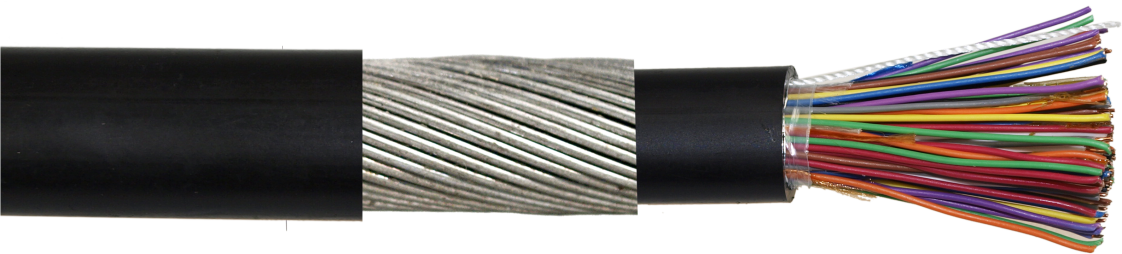

Cable structure
Conductor: solid bare copper
Insulation: foam PE
Filler: petroleum jelly
Separator: tape
Inner sheath: PE
Armoring: GSWA (Galvanized Steel Wire Armor)
Sheath: PE
Sheath color: black
Pair identification
Quad: Orange/Green/White/Black
Pair 1: White/Blue
Pair 2: White/Orange
Pair 3: White/Green
Pair 4: White/Brown
Pair 5: White/Grey
Pair 6: Red/Blue
Pair 7: Red/Orange
Pair 8: Red/Green
Pair 9: Red/Brown
Pair 10: Red/Grey
Tape lapping identification
Unit 1: Blue
Unit 2: Orange
Unit 3: Green
Unit 4: Brown
Unit 5: Grey
Unit 6: White
Unit 7: Red
Unit 8: Black
Unit 9: Yellow
Unit 10: Violet
