Application
The cable is similar to CW 1308 in design and application, but with low smoke halogen free insulation and sheath. CW 1600 has the additional screening advantage due to an Al-PET foil screen and drain wire.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
7.5 x cable diameter
Maximum conductor resistance at 20 °C
96 Ohm/km
Nominal diameter of conductors
0.5 mm
Maximum average mutual capacitance
at 0.8 kHz-3.0 kHz: 80 nF/km
Maximum Capacitance Unbalance
at 0.8 kHz-3.0 kHz pair-to-pair:
500 pF/500m

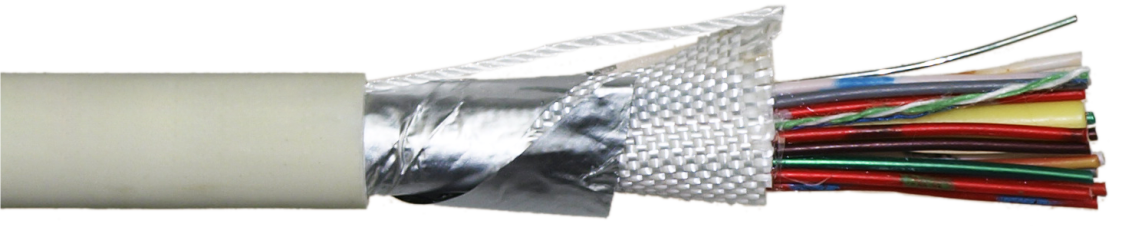

Cable structure
Conductor: solid annealed bare or tinned copper
Insulation: PE
Screen: Al-PET and drain wire
Fire Barrier Tape: Mica glass tape is included in cable with more than 10 pairs for achieving the required fire properties
Nylon ripcord
Sheath: LSZH
