Application
The cable is mainly designed to connect telephone equipments and can be used in low level signaling applications. It is suitable for both indoor and outdoor environment.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
15 x cable diameter
Maximum conductor resistance at 20 °C
96 Ohm/km
Maximum Earth Resistance at 20 °C
12.40 Ohm/km
Maximum capacitance unbalance
500 pF/500m

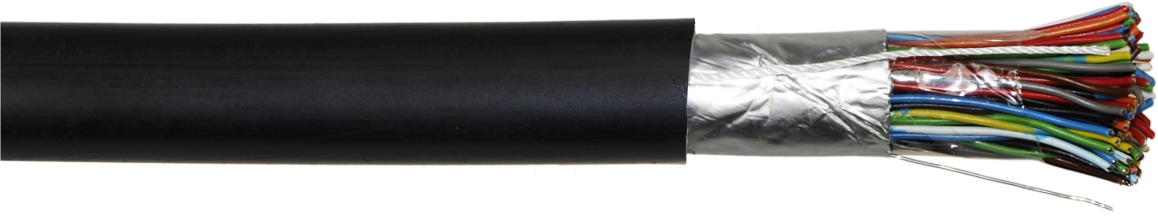

Cable structure
Conductor: solid plain copper
Insulation: SR-PVC
Separator: tape
Screen: Al-PET and tinned copper drain wire
Nylon rip cord
Sheath: LSZH
Sheath color: black
