Application
The cable is suitable for indoor use in the telecom transmission systems. It’s robust and with good transmission properties.
Technical data
Maximum conductor resistance
at 20°C (Ohm/km): 17.5
Minimum insulation DC resistance
at 20°C (MOhm x km): 228
Temperature rating (℃): 75
Nominal voltage: 0.75 kV AC (max peak value)
Velocity ratio (%): 66
Impedance (Ohm): 75±3
Capacitance (pF/m): 66

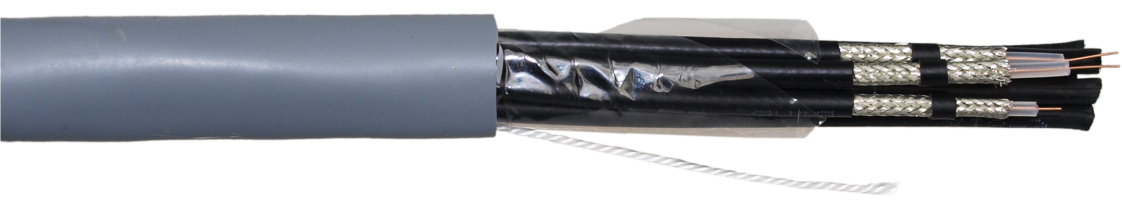

Cable structure
Conductors: solid plain copper wire; 0.31 mm
Insulation: PE; 1.95 mm
Outer conductor: double tinned copper braiding
Sheath: PVC, diameter 3.55 mm
