Application
The cables are designed for XDSL transmission system. It ensures data speeds up to 40 MHz.
Technical data
Temperature rating: 70 ℃
Minimum bending radius
10 x cable diameter
Maximum conductor resistance at 20 °C
96 Ohm/km
Impedance at 0.3 – 1 MHz (Ohm): 100±20
Impedance at 1 – 40 MHz (Ohm): 100±15
Maximum Resistance Unbalance(%): 2
Average mutual capacitance (nF/km): 52
Maximum Capacitance Unbalance
at 1kHz pair-to-pair (pF/500m): 45
Maximum Capacitance Unbalance
at 1kHz pair-to-ground (pF/500m): 400

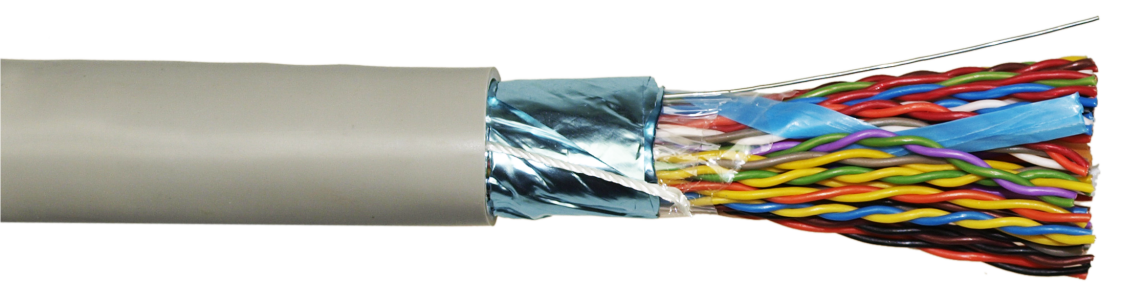

Cable structure
Conductors: Solid annealed bare copper sized 0.5 mm
Insulation: PE
Screen: Al-PET and tinned copper drain wire
Nylon ripcord
Sheath: PE
